SS2 Modification - Page: 5 of 6

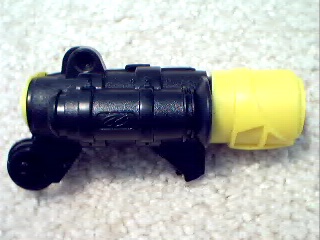

25) front before modification

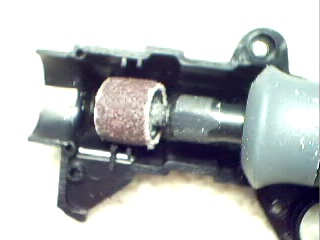

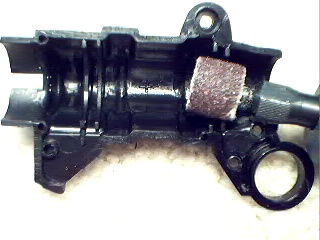

26) Sand out the guides until the barrel fits

27) More sanding

28) Top piece is unmodified, bottom is sanded.  Note that the tabs have been broken off of the right side and part has been trimmed from the left (using a dremel cutter wheel) to make room for the barrel.

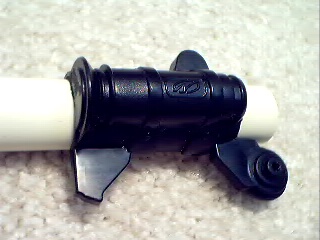

29) The goal is to make the inner hole just big enough for the barrel

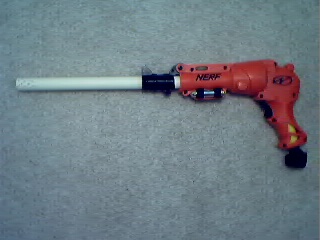

30) Once completed, re-assemble and adjust the 10 inch piece back and forth until it is properly aligned to be parallel with the 4 inch barrel when in place, mark the position, then disassemble and hot-melt glue into place.
