31) side view of gun in open position |

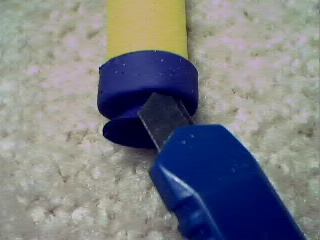

32) Using a razor blade, trim the outer rubber skirt from the darts |

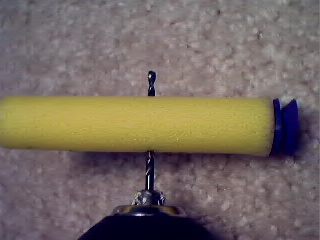

33) Using a drill, make at least 7 vent holes in the dart shaft. (This is important, it keeps them from bursting under the increased pressure) |

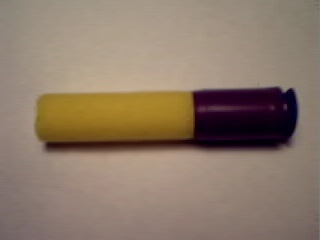

34) Finally, wrap end of dart with electrical tape until diameter is large enough to achieve proper seal with barrel but small enough to slide through easily. Note: dont make tape too tight, or it will squeeze the foam and cause damage to the dart upon hitting solid objects. |

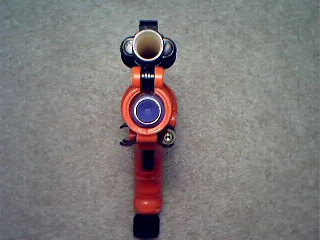

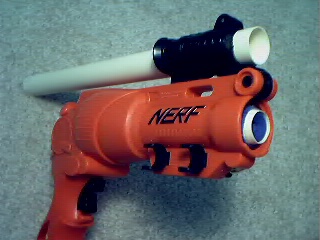

35) completed gun in open position. Note the laser pointer clipped into one of the spare dart holders. |
36) Usage: The pressure valve may leak a bit during the first 3 pumps, so pump quickly to seal the valve. At least 4 pumps may be needed to get the dart out. The upper limit of pumps is not known, but 25 seems to provide a lot of pressure. |
SS2 Modification - Page: 6 of 6
