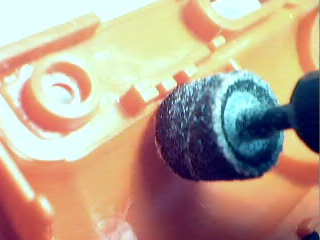

19) Remove bottom-side of catch guide |

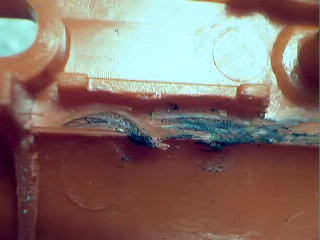

20) Bottom side removed |

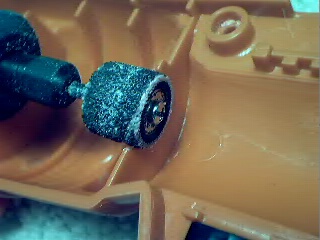

21) Widen the rear suport until the new barrel fits |

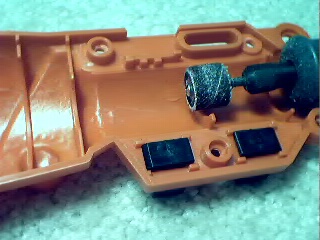

22) Widen the middle support until the new barrel fits |

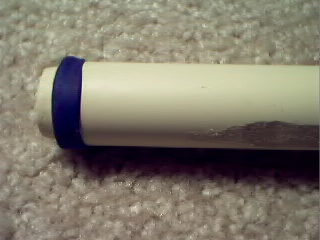

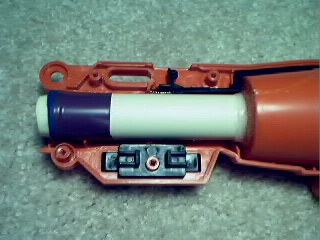

23) Use superglue to attach an extra piece of rubber (from step 32) to the end of the barrel. This may also be supported with electrical tape. The idea is to attach it in such a way that the 10 inch piece will still fit on, but will make an airtight seal. Note the flat area at the bottom which is on top in the next picture. |
 |
